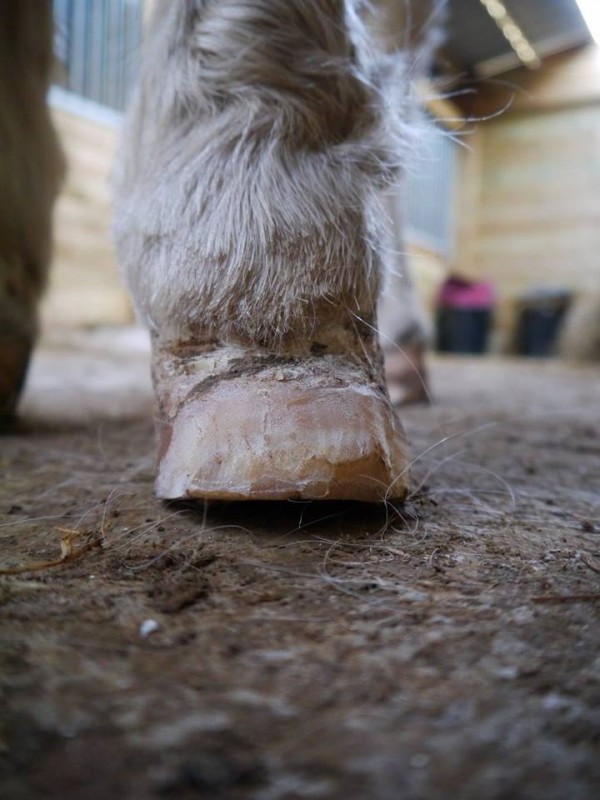

The main issue following the trim is that the heels are now very high.

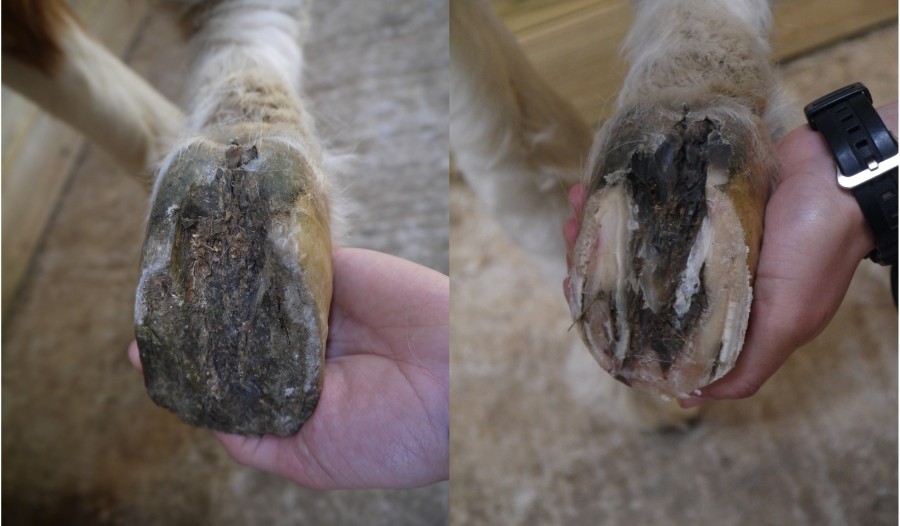

This happened with Dolly too - I think I should have concentrated on her hairline angle far more to prevent this happening - although as she had a lot of heel and frog tissue that I didn't dare cut into, perhaps I couldn't have done more without frequent x-rays to guide each trim. At that time her collateral grooves did not seem particularly deep - but I later became braver at clearing out frog material and material blocking the collateral grooves, and used a very thin stick to measure the collateral grooves (a wooden kebab stick), and this allowed her feet to be trimmed to collateral groove depth (which I had checked against x-rays), giving confidence to bring her heels down.

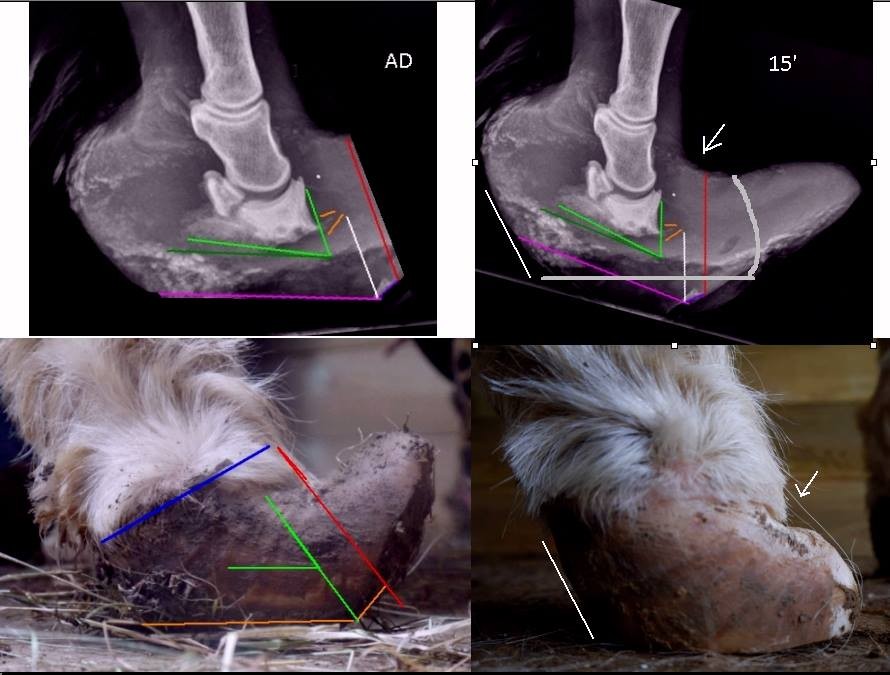

In this image:
top left is the right fore before the trim,
bottom right is the right fore after the trim,

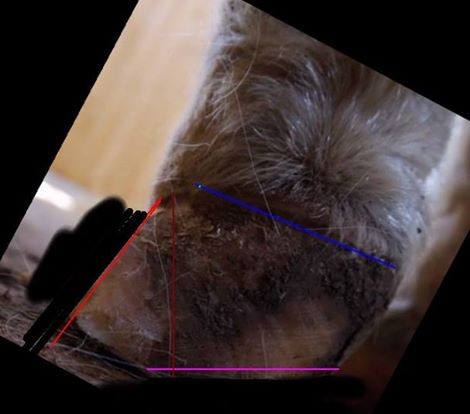

bottom left - I've rotated the before trim photo by 25 degrees to try to get a similar hairline angle as the after trim photo, to try to illustrate what might be happening inside the foot, and

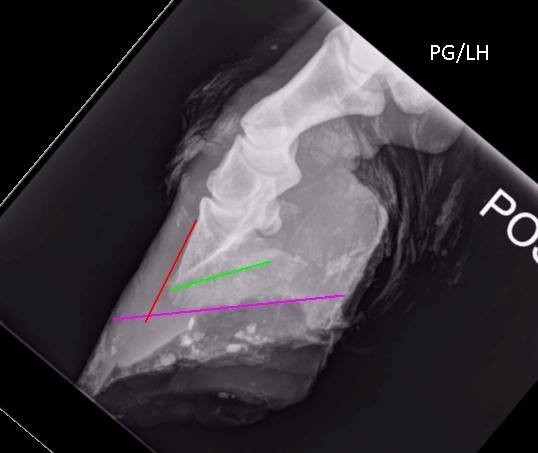

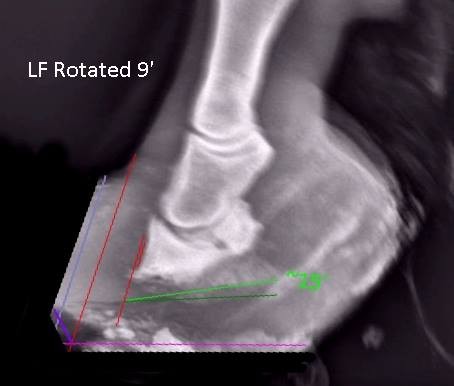

top right I've rotated the x-ray by a similar amount.

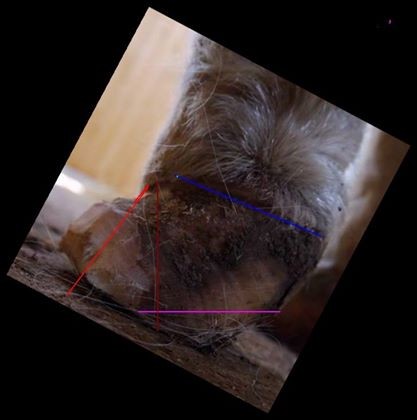

In the before trim photo (top left), the orange line is the heel - this can be hard to understand! The alignment of P3 at this point wasn't too bad. But when the unwanted material on the bottom of the foot (i.e. the underrun heel) (orange line) is trimmed, if the trim doesn't go far enough, the heel that was horizontal will become vertical and high, changing the orientation of the foot.
I think!

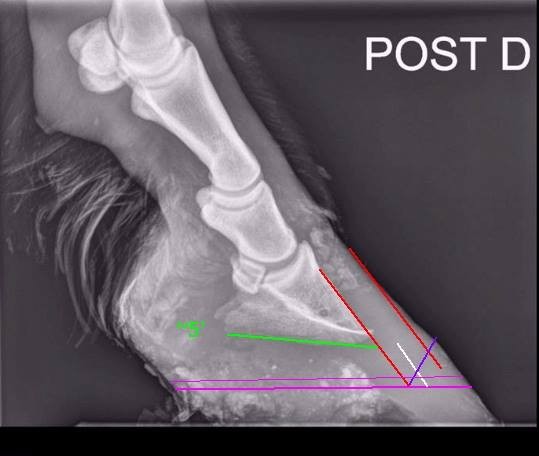

I haven't done enough rehabilitations of these feet to be sure yet, but I would currently suggest that on these feet, the hairline (coronary band) should always be marked when x-rays are taken, as, even though the hairline moves, this seems to be the (or one of the) most reliable point on the foot to guide the trim.
I would also make a large mark on the heel of the Aladdin's slipper foot where the orange line meets what looks like the heel (probably the heel bulbs), and keep my eye on that during the trim.
It would be very useful to see another photo of this foot now with the hair clipped away from the hairline, so that the contours of the foot can be matched exactly with the x-ray, as it is hard to be sure exactly where the hairline is or of its angle, or where the heel bulbs change into the pastern.
IF what I have modelled here is correct, then I am concerned that the palmar angle could now be very high, and the tip of P3 could be quite close to the ground.
